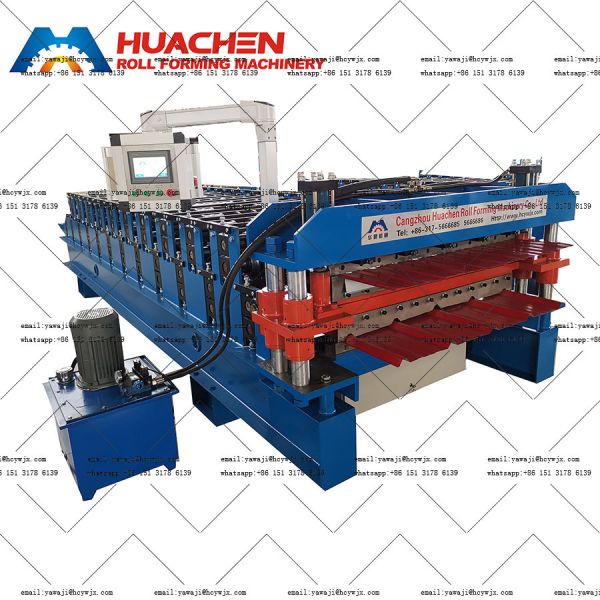

Product Description
Our double-layer tile pressing machine is not only of excellent quality, but also provides you with a full range of service guarantees. The company has a professional pre-sales team that can recommend the most suitable equipment model and configuration according to your needs. During the equipment installation and commissioning process, we will send experienced technicians to the site for guidance to ensure that the equipment is installed smoothly and put into use. At the same time, we also provide customers with comprehensive after-sales services, including equipment maintenance, spare parts supply, etc., so that you have no worries. In addition, we also provide technical training services to help your operators master the operation skills and maintenance methods of the equipment to ensure the normal operation of the equipmen
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1000mm |
| Roller Stations | 11/12 Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 15m/min |
| Total Power | 5.5+5.5KW |
| Voltage | 380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Pressing Section & Cutter
The material of blade is CR12.
After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.
Made of high-quality materials, it has undergone strict quality control and durability testing to ensure the stability and durability of the equipment. The maintenance cost is low, and only regular inspection and maintenance of key parts are required to keep it in good working condition.
